Module 2: Association Rule Mining

Association Rule Mining

  • Try to automatically find simple if-then rules within the data set

Example

  • Famous (and fake) example:

  • People who buy more diapers buy more beer

  • If person X buys diapers,

  • Person X buys beer

  • Conclusion: put expensive beer next to the diapers

Interpretation #1

  • Guys are sent to the grocery store to buy diapers, they want to have a drink down at the pub, but they buy beer to get drunk at home instead

Interpretation #2

  • There’s just no time to go to the bathroom during a major drinking bout

Serious Issue

  • Association rules imply causality by their if-then nature

  • But causality can go either direction

If-conditions can be more complex

  • If person X buys diapers, and person X is male, and it is after 7pm, then person Y buys beer

Then-conditions can also be more complex

  • If person X buys diapers, and person X is male, and it is after 7pm, then person Y buys beer and tortilla chips and salsa

  • Can be harder to use, sometimes eliminated from consideration

Useful for…

  • Generating hypotheses to study further

  • Finding unexpected connections

    • Is there a surprisingly ineffective instructor or math problem?

    • Are there e-learning resources that tend to be selected together?

Questions? Comments?

Association Rule Mining

  • Find rules

  • Evaluate rules

Association Rule Mining

  • Find rules

  • Evaluate rules

Rule Evaluation

  • What would make a rule “good”?

Rule Evaluation

  • Support/Coverage

  • Confidence

  • “Interestingness”

Support/Coverage

  • Number of data points that fit the rule, divided by the total number of data points

  • (Variant: just the number of data points that fit the rule)

Example

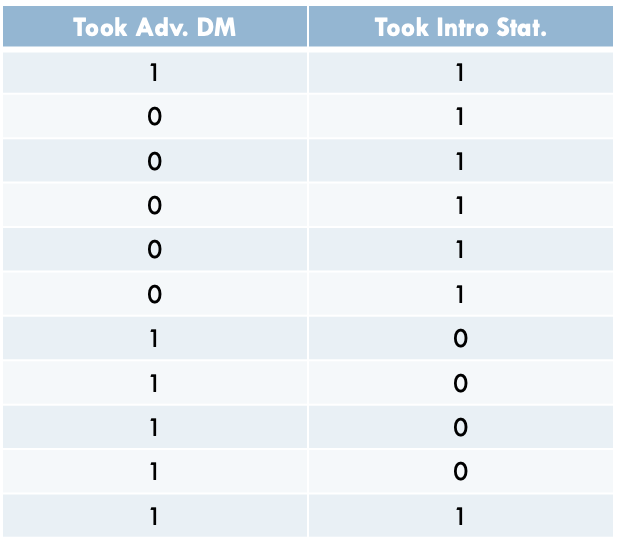

Rule: If a student took Advanced Data Mining, the student took Intro Statistics

Support/coverage?

Example

  • Rule: If a student took Advanced Data Mining, the student took Intro Statistics

  • Support/coverage?

  • 2/11= 0.1818

Confidence

  • Number of data points that fit the rule, divided by the number of data points that fit the rule’s IF condition

  • Equivalent to precision in classification

  • Also referred to as accuracy, just to make things confusing

  • NOT equivalent to accuracy in classification

Example

  • Rule: If a student took Advanced Data Mining, the student took Intro Statistics

  • Confidence?

Example

  • Rule: If a student took Advanced Data Mining, the student took Intro Statistics

  • Confidence?

  • 2/6 = 0.33

Important Note

  • Implementations of Association Rule Mining sometimes differ based on whether the values for support and confidence (and other metrics)

  • Are calculated based on exact cases

  • Or some other grouping variable (sometimes called “customer” in specific packages)

For example

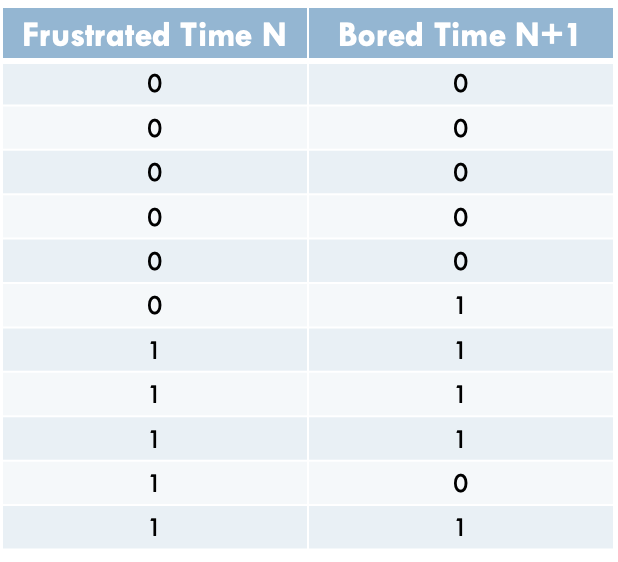

  • Let’s say you are looking at whether boredom follows frustration

  • If Frustrated at time N, Then Bored at time N+1

For example

  • If you just calculate it this way,

  • Confidence = 4/5

For example

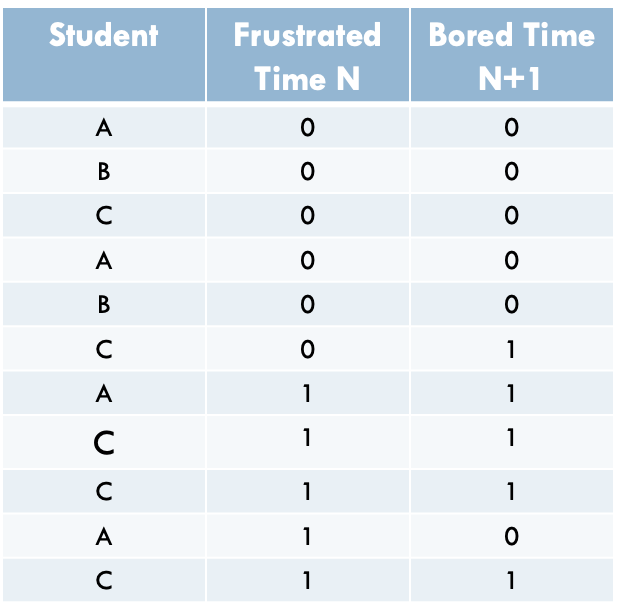

  • But if you treat student as your “customer” grouping variable

  • Then whole rule applies for A, C And IF applies for A, C

  • So confidence = 1

Arbitrary Cut-offs

  • The association rule mining community differs from most other methodological communities by acknowledging that cut-offs for support and confidence are arbitrary

  • Researchers typically adjust them to find a desirable number of rules to investigate, ordering from best-to-worst…

  • Rather than arbitrarily saying that all rules over a certain cut-off are “good”

Questions? Comments?

Other Metrics

  • Support and confidence aren’t enough

  • Why not?

Why not?

  • Possible to generate large numbers of trivial associations

    • Students who took a course took its prerequisites (AUTHORS REDACTED, 2009)

    • Students who do poorly on the exams fail the course (AUTHOR REDACTED, 2009)

Interestingness

Interestingness

  • Not quite what it sounds like

  • Typically defined as measures other than support and confidence

  • Rather than an actual measure of the novelty or usefulness of the discovery

Potential Interestingness Measures

  • Cosine

    \[\frac{P(A^{\wedge}B)}{\sqrt{P(A)*P(B))}}\]

  • Measures co-occurrence

  • Merceron & Yacef (2008) note that it is easy to interpret (numbers closer to 1 than 0 are better; over 0.65 is desirable)

Example

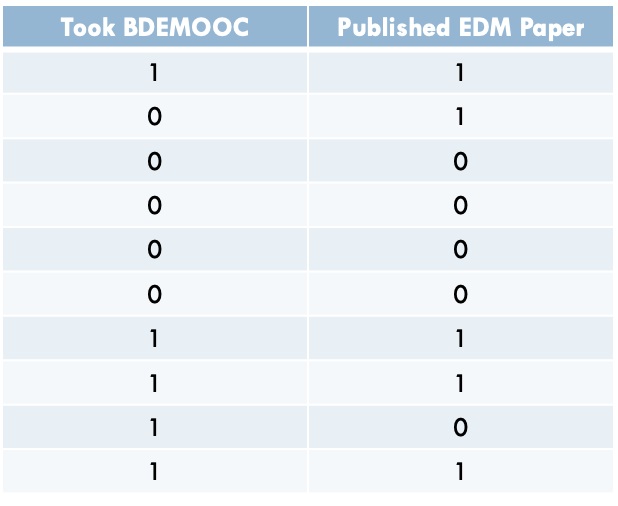

  • Rule: If a student took BDEMOOC, the student published EDM paper

  • Cosine? \[\frac{P(A,B)}{\sqrt{P(A)*P(B))}}\]

  • (0.4)/sqrt(0.5*0.5) = 0.8

Potential Interestingness Measures

  • Lift\[ \frac{Confidence(A\to B)}{P(B)} = \frac{P(A^{\wedge}B )}{P(A)*P(B)} \]

  • Measures whether data points that have both A and B are more common than would be expected from the base rate of each

  • Merceron & Yacef (2008) note that it is easy to interpret (lift over 1 indicates stronger association)

Example

  • Rule: If a student took BDEMOOC, the student published EDM paper

  • Lift?

    \[ \frac{P(A^{\wedge}B )}{P(A)*P(B)} \]

  • (0.4)/(0.5*0.5) = 1.6

Merceron & Yacef recommendation

  • Rules with high cosine or high lift should be considered interesting
  • Rules with high cosine or high lift should be considered interesting

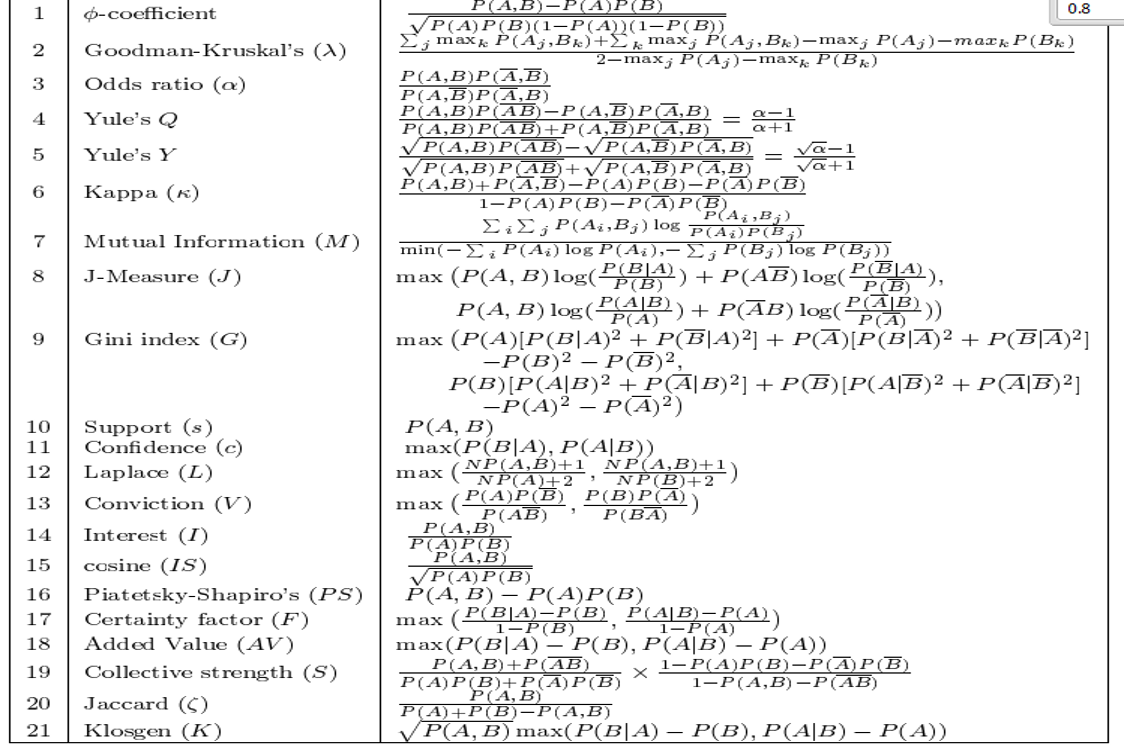

Other Interestingness measures

(Tan, Kumar, & Srivastava, 2002)

Worth drawing your attention to

  • Jaccard

    \[ \frac{P(A^{\wedge}B)}{P(A)+P(B)- P(A^{\wedge}B)} \]

  • Measures the relative degree to which having A and B together is more likely than having either A or B but not both

Other idea for selection

  • Select rules based both on interestingness and based on being different from other rules already selected (e.g., involve different operators)

Alternate approach (Bazaldua et al., 2014)

  • Compared “interestingness” measures to human judgments about how interesting the rules were

  • They found that Jaccard and Cosine were the best single predictors

  • And that Lift had predictive power independent of them

  • But they also found that the correlations between [Jaccard and Cosine] and [human ratings of interestingness] were negative

    • For Cosine, opposite of prediction in Merceron & Yacef!

Questions? Comments?

Association Rule Mining

  • Find rules

  • Evaluate rules

The Apriori algorithm (Agrawal et al., 1996)

  1. Generate frequent itemset

  2. Generate rules from frequent itemset

Generate Frequent Itemset

  • Generate all single items, take those with support over threshold – {i1}

  • Generate all pairs of items from items in {i1}, take those with support over threshold – {i2}

  • Generate all triplets of items from items in {i2}, take those with support over threshold – {i3}

  • And so on…

  • Then form joint itemset of all itemsets

Generate Rules From Frequent Itemset

  • Given a frequent itemset, take all items with at least two components

  • Generate rules from these items

    • E.g. {A,B,C,D} leads to {A,B,C}->D, {A,B,D}->C, {A,B}->{C,D}, etc. etc.

  • Eliminate rules with confidence below threshold

Finally

  • Rank the resulting rules using your interest measures

Questions? Comments?

Variant on association rules

  • Negative association rules (Brin et al., 1997)

    • What doesn’t go together? (especially if probability suggests that two things should go together)

    • People who buy diapers don’t buy car wax, even though 30-year old males buy both?

    • People who take advanced data mining don’t take hierarchical linear models, even though everyone who takes either has advanced math?

    • Students who game the system don’t go off-task?

Rules in Education

  • What might be some reasonable applications for Association Rule Mining in education?

  • Can you brainstorm some ways you might use them in your own work?
